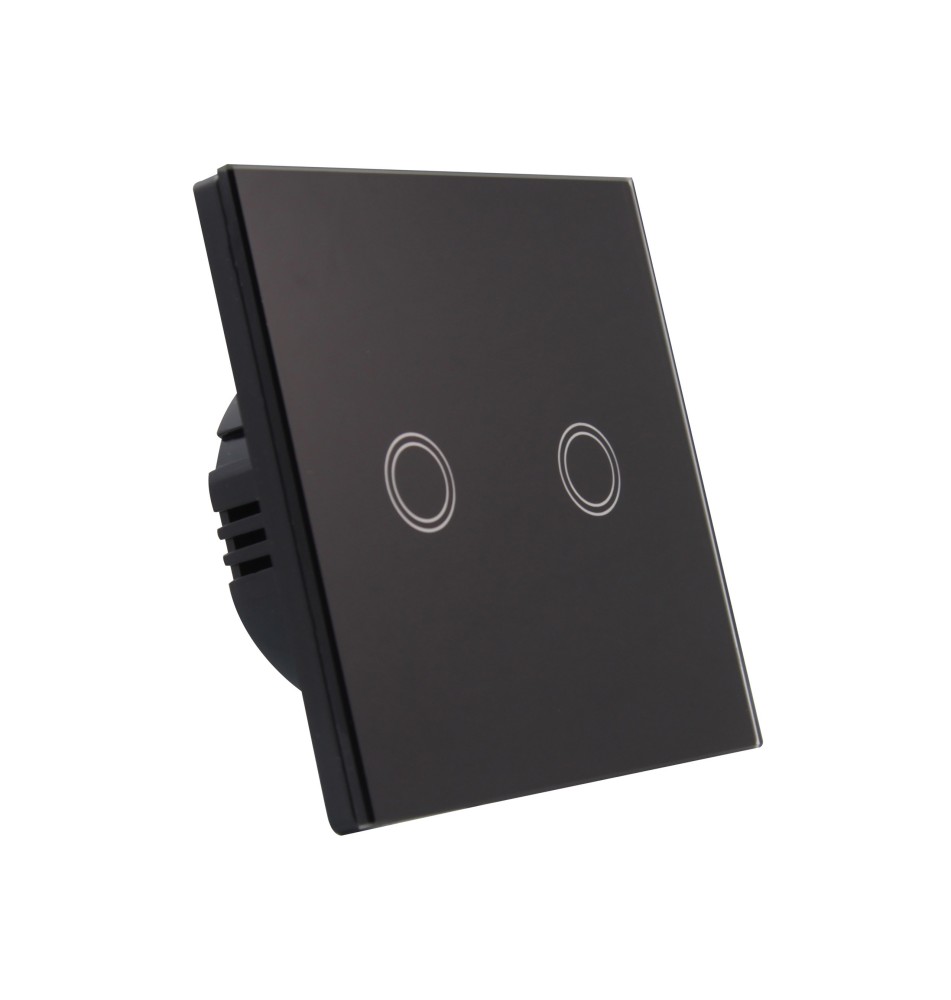

Black Double Touch-Sensitive Glass Switch

Master LED
7106
Black

Availability: Available

Data Sheet

Color
Black
Backlight Color in Standby Mode
Blue
Backlight color during operation
Red
Max. load capacity
3–300 W per button (100 W for LEDs)
Minimum load per circuit
3 W
Input voltage
AC 90-250 V 50/60 Hz
Standby Power Consumption
0.02W
Wi-Fi Control
No
Button
Touch-sensitive
Material
Tempered glass + plastic
Resistance Class
IP54
Service life
100,000 cycles
Operating temperature
-40 to 60 °C
Relative humidity
10%-93% (uncompressed)
Number of buttons
2
Included in the set
Switch, LED Capacitor (<3 W), Mounting Screws
Hole diameter
Ø50 mm (fits a 60 mm diameter box)
Panel thickness after installation
7mm
Panel Dimensions
86 x 86 x 35 mm
Master carton packaging
50 pcs
Quantity per package
150 pcs
Quantity per pallet
2000 pcs (250 kg)

Specific References

EAN13
5908263387461
