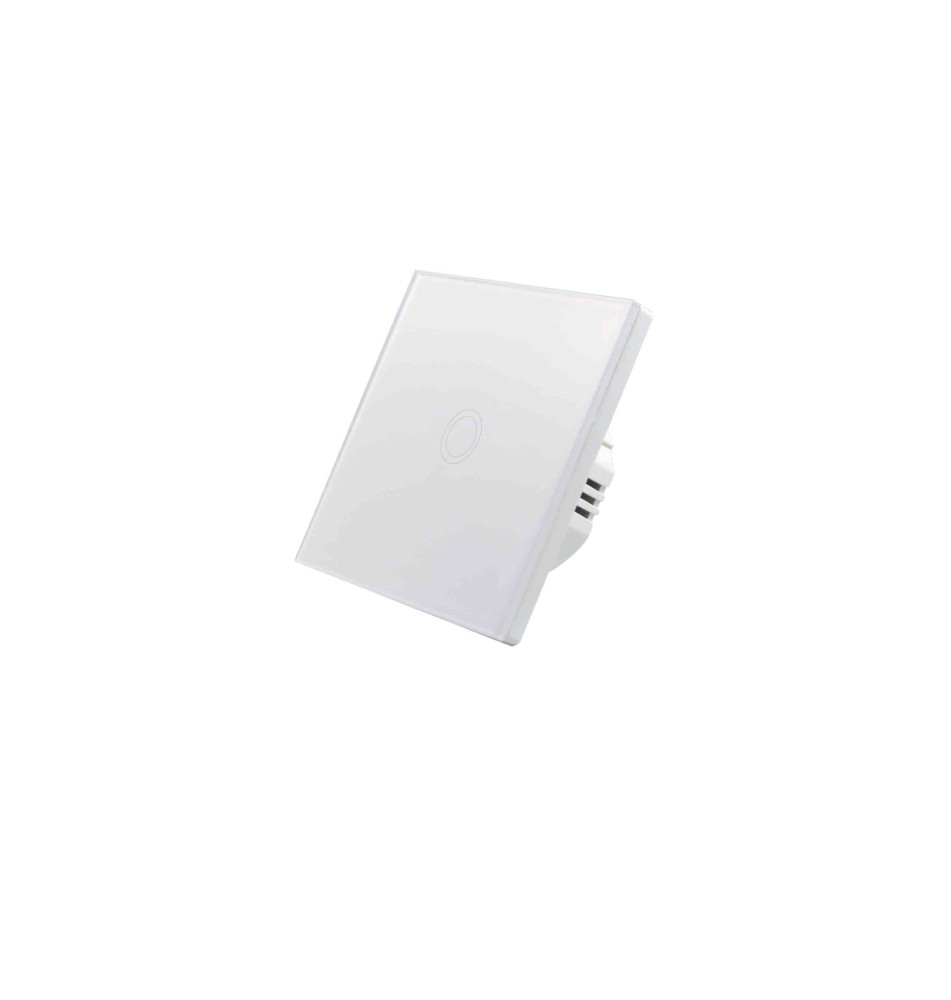

S2 Flush-Mount Glass Switch Remote Control, White Cable

Master LED
3876
White

Availability: Available

Data Sheet

Color
White
Backlight Color in Standby Mode
Blue
Backlight color during operation
Red
Input voltage
AC 90-250 V 50/60 Hz
Standby Power Consumption
0.02W
Wi-Fi Control
No
Button
Touch-sensitive
Material
Tempered glass + plastic
Resistance Class
IP45
Service life
100,000 cycles
Operating temperature
-10 to 60 °C
Relative humidity
10%-93% (uncompressed)
Number of buttons
1
Included in the set
Remote Control, LED Capacitor (<3 W), Mounting Screws
Fits
The remote control works only with RF 2282 and 2819 glass switches
Additional Information
S2 output to the stairwell—a signal wire between the switches
Hole diameter
Ø50 mm (fits a 60 mm diameter box)
Panel thickness after installation
7mm
Panel Dimensions
86 x 86 x 35 mm
Master carton packaging
50 pcs
Quantity per package
100 pcs
Quantity per pallet
1200 pcs (150 kg)

Specific References

EAN13
5904703000600

Download

Instrukcja
.pdf

Download (1MB)
