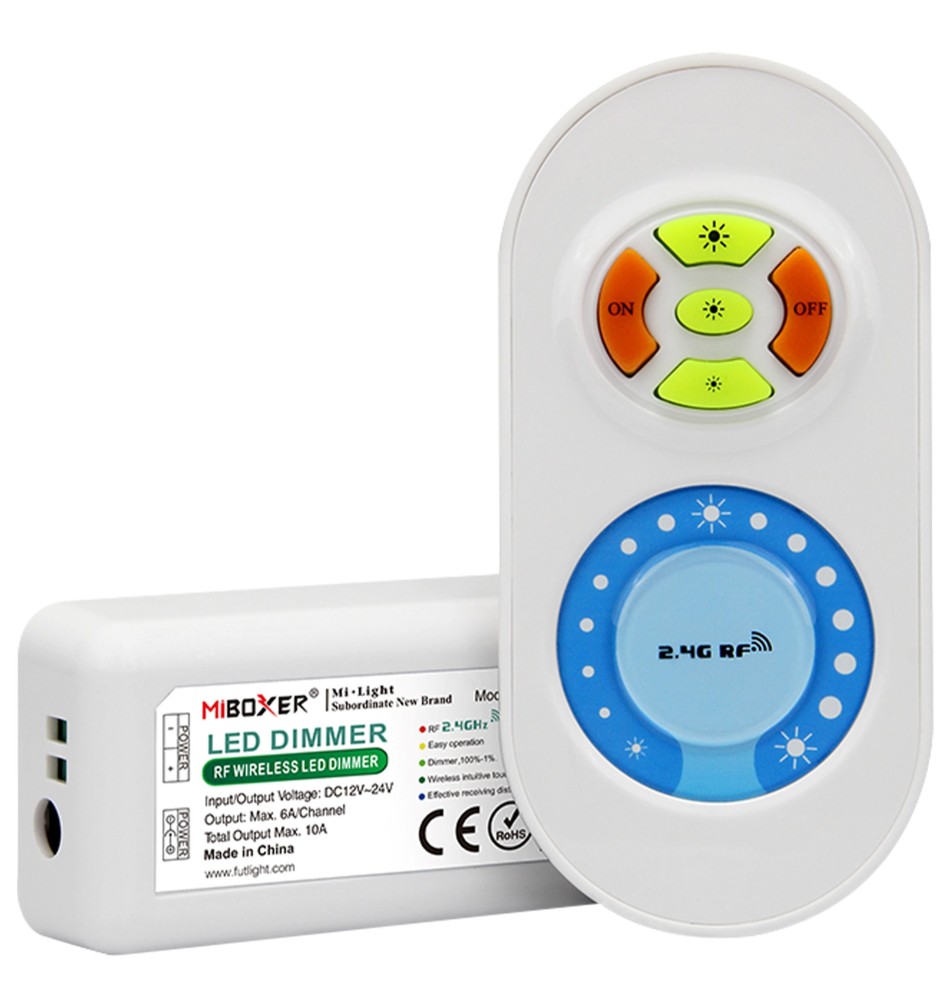

Mono RF 12/24V LED Controller + FUT021 Remote Control.

FUT021

Availability: Available

Data Sheet

Application
Single-Color (Mono) LED Strips
Features
Dimming
Transmission power
6 dBm
Max. Load
10 A
Input voltage
12–24 V DC
Current
6 A / channel
Battery
2x AAA 3 V
Batteries included
No
Method of Communication
RF 2.4 GHz
Output
2-channel
Resistance Class
IP20
Operating temperature
-20 to 60 °C
Number of buttons
5 + touch panel
Included in the set
Mono Controller + Remote Control
How to Connect
Common anode
Range
30 m
Dimensions of the control panel
85 x 45 x 22 mm
Remote Control Dimensions
114 x 55.5 x 21.5 mm
Master carton packaging
100 pcs
Quantity per package
200 pcs
Quantity per pallet
2400 pcs

Specific References

EAN13
6970602180155
