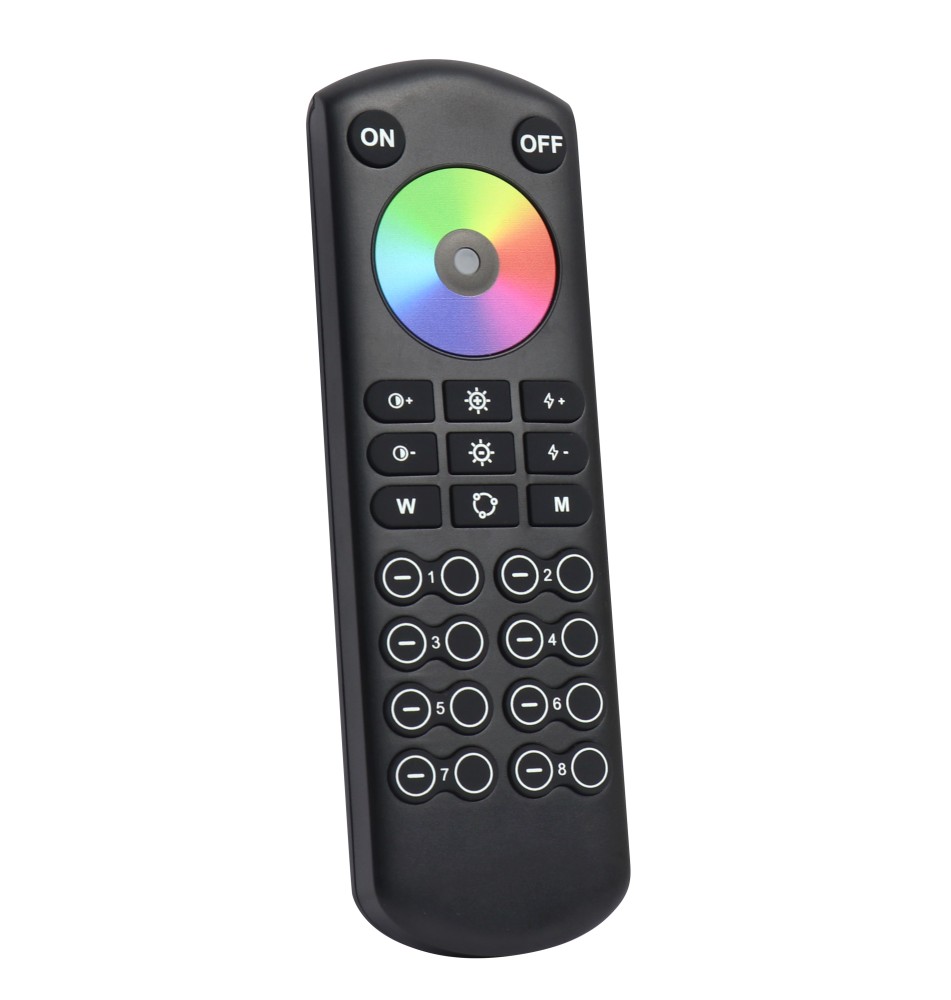

MLT05RFB 8-Zone 120-meter Touch-Sensitive RF RGB+CCT Remote Control

Master LED
MLT05RFB

Availability: Available

Data Sheet

Application
Controllers for RGB + CTT strips
Properties
Touch-sensitive
Certificates
CE/RoHS/FCC
Transmission power
6 dBm
Input voltage
3 V DC
Standby Power Consumption
15 μA
Modulation method
GFSK
Control Distance
150 m
Frequency
2400-2483.5 MHz
Operating temperature
-20 to 40 °C
Dimensions
156 x 47 x 19 mm
Weight
90 g
Master carton packaging
50 pcs
Quantity per package
100 pcs
Quantity per pallet
1000 pcs

Specific References

EAN13
5904703014362

Download

Instrukcja
.pdf

Download (11.98MB)
