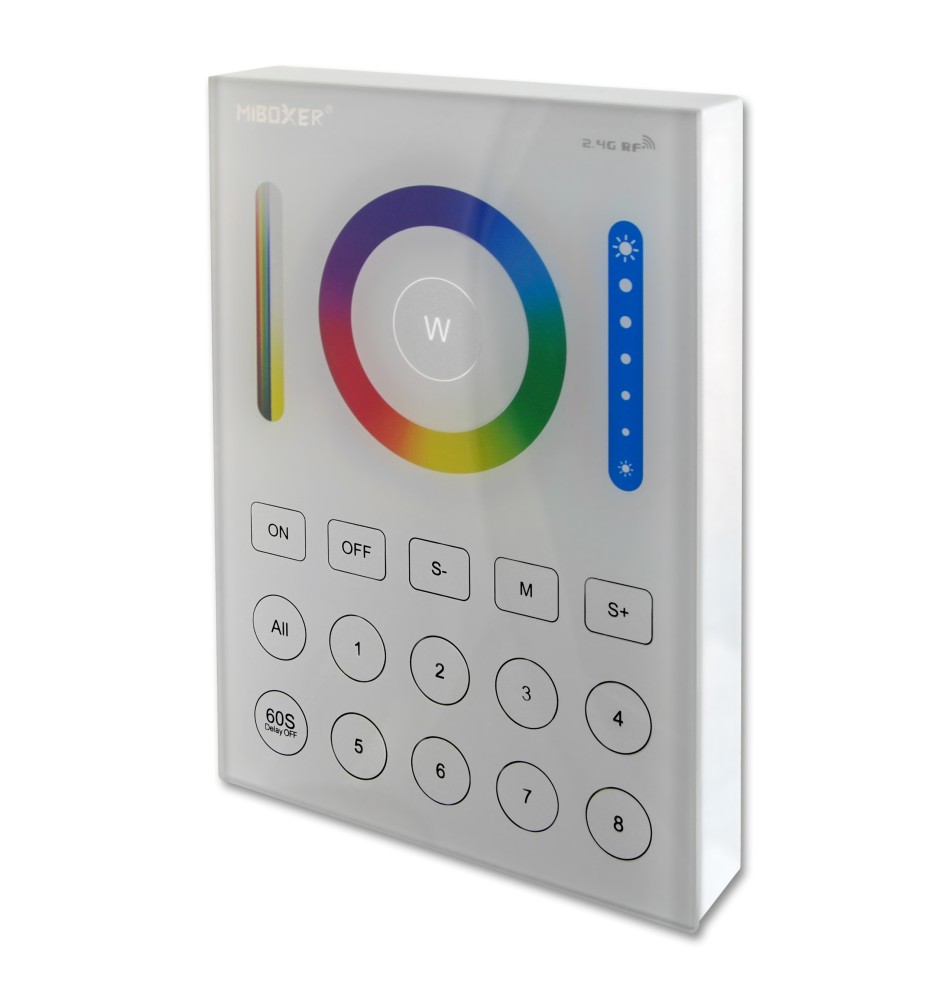

B8 8-Zone Touchscreen RGB+CCT RF Remote Control Panel

Master LED
B8

Availability: Available

Data Sheet

Application
Controllers for RGB, RGBW, and RGB+CCT strips
Features
8-zone control, RGB, RGBW, and RGB+CCT color changing, dimming; any number of products can be assigned to a single zone (up to 4 remote controls can be assigned to a single product); surface-mount installation
Transmission power
6 dBm
Battery
2x AAA 3 V
Batteries included
No
Method of Communication
RF 2.4 GHz (2400–2483.5 MHz)
Modulation
GFSK
Resistance Class
IP20
Operating temperature
-20 to 60 °C
Number of buttons
16 + touch panels
Compatibility
LS2, WL5, FUT037M, FUT038M, FUT039M
Range
30 m
Remote Control Dimensions
106 x 146 x 20 mm
Master carton packaging
60 pcs
Quantity per package
60 pcs

Specific References

EAN13
6970602180902
