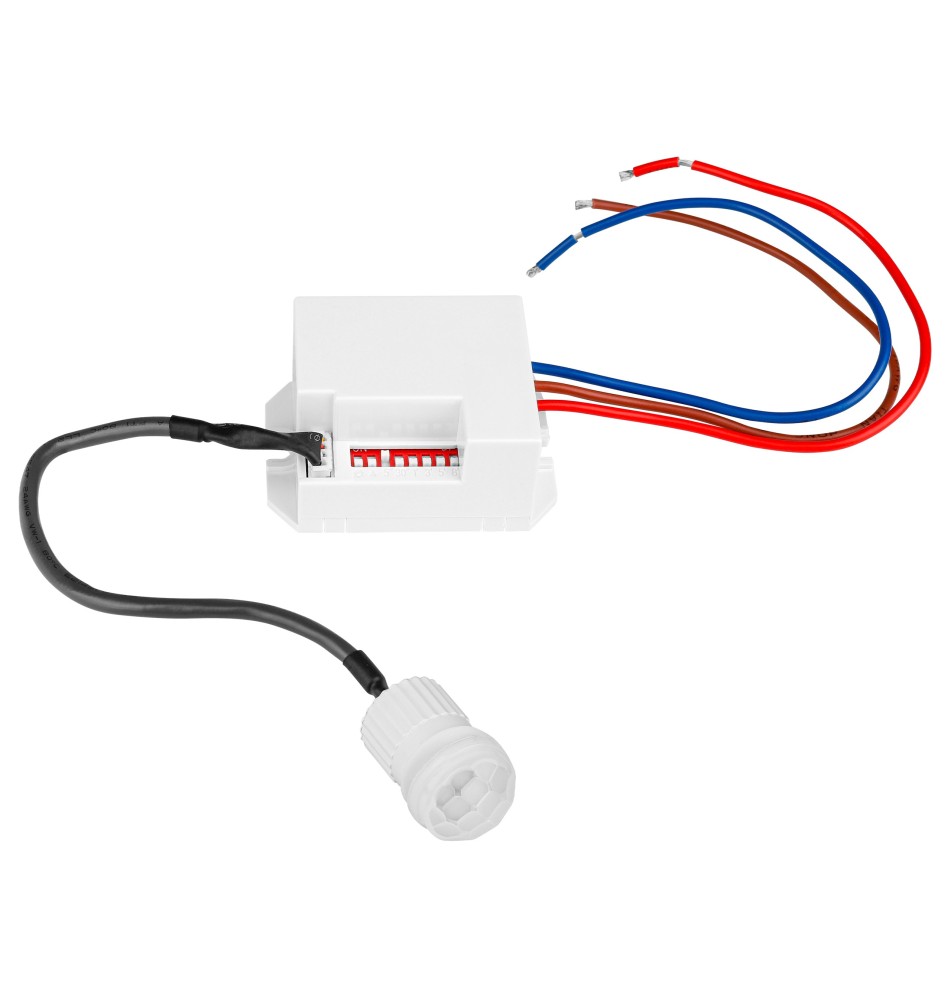

PIR Motion Sensor with Cable

Master LED
4987

Availability: Available

Data Sheet

Max. Load
800 W
Input voltage
AC 220-240 V 50/60 Hz
Current consumption
about 0.5 W
Detection Details
3 m / 6 m (optional) [<24 °C]
Detection angle
120° / 360°
Detection distance
6 m
Activation threshold
10–2,000 LUX
Resistance Class
IP20
Ambient temperature
-20 to 40 °C
Air humidity
<93% RH
Lighting Duration
5 seconds / 30 seconds / 1 minute / 3 minutes / 5 minutes / 8 minutes
Additional Information
A highly sensitive infrared sensor with adjustable settings (illumination time, activation threshold, and detection range).
Installation Height
1.5–3.5 m (wall)
Diameter of the sensor hole
18 mm
Power cord length
16cm
Length of the cable with the PIR sensor
23cm
Dimensions of the control panel
55 x 35 x 25 mm
Master carton packaging
100 pcs (7.42 kg)
Quantity per package
200 pcs (14.00 kg)
Quantity per pallet
2000 pcs (150.00 kg)

Specific References

EAN13
5903002030264
