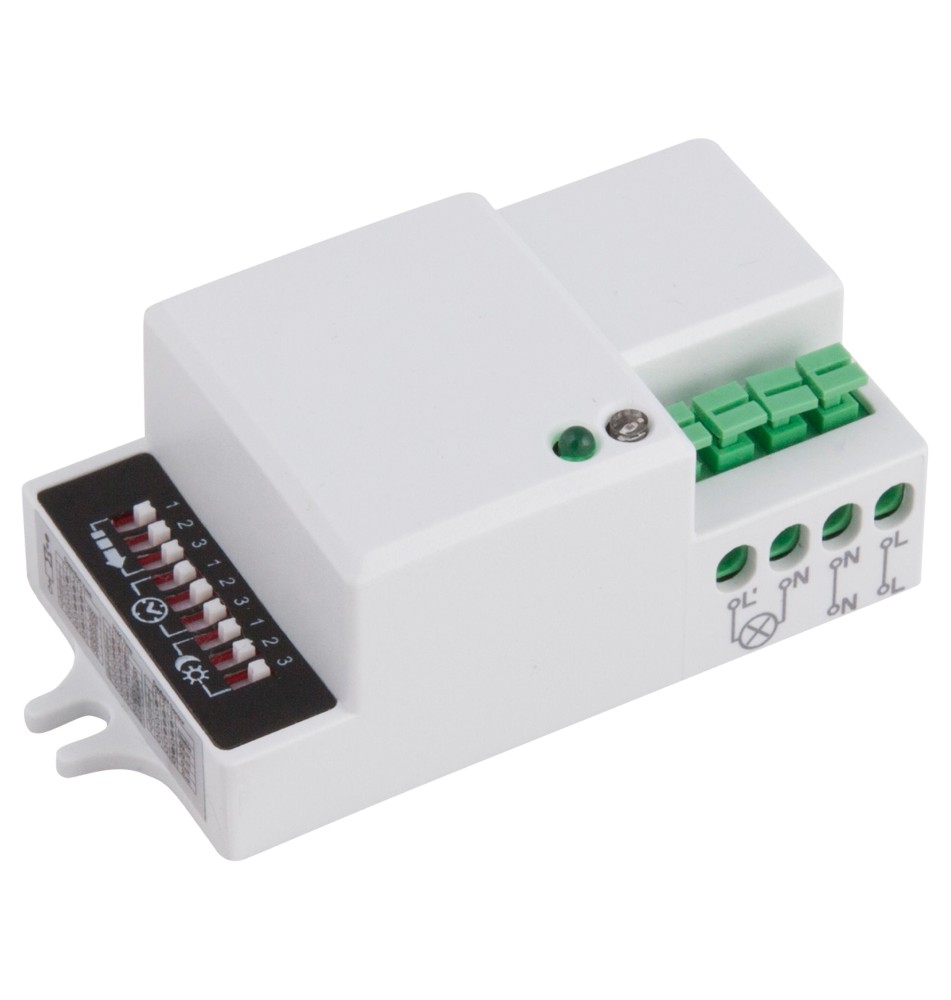

DIP Microwave Motion Sensor

XUDO
XD-ZA101W

Availability: Available

Data Sheet

Max. Load
1,200 W
Input voltage
AC 220-240 V 50/60 Hz
Current consumption
0,5 W
Motion Detection
0.6–1.5 m/s
Detection Details
Ceiling 1–8 m / Wall 5–15 m
Detection angle
180/360°
Detection distance
15 m
Microwave system
5.8 GHz CW Radar, ISM Band
Activation threshold
2 / 5 / 20 / 50 / 2,000 LUX
Resistance Class
IP20
Ambient temperature
-20 to 40 °C
Air humidity
<93% RH
Operating time
5s / 30s / 1 min / 5 min / 10 min / 20 min / 30 min
Installation Height
2-8 m
Dimensions
78 x 37 x 25 mm
Master carton packaging
100 pcs
Quantity per package
200 pcs
Quantity per pallet
2000 pcs

Specific References

EAN13
5904703022633

Download

Instrukcja
.pdf

Download (1.89MB)
