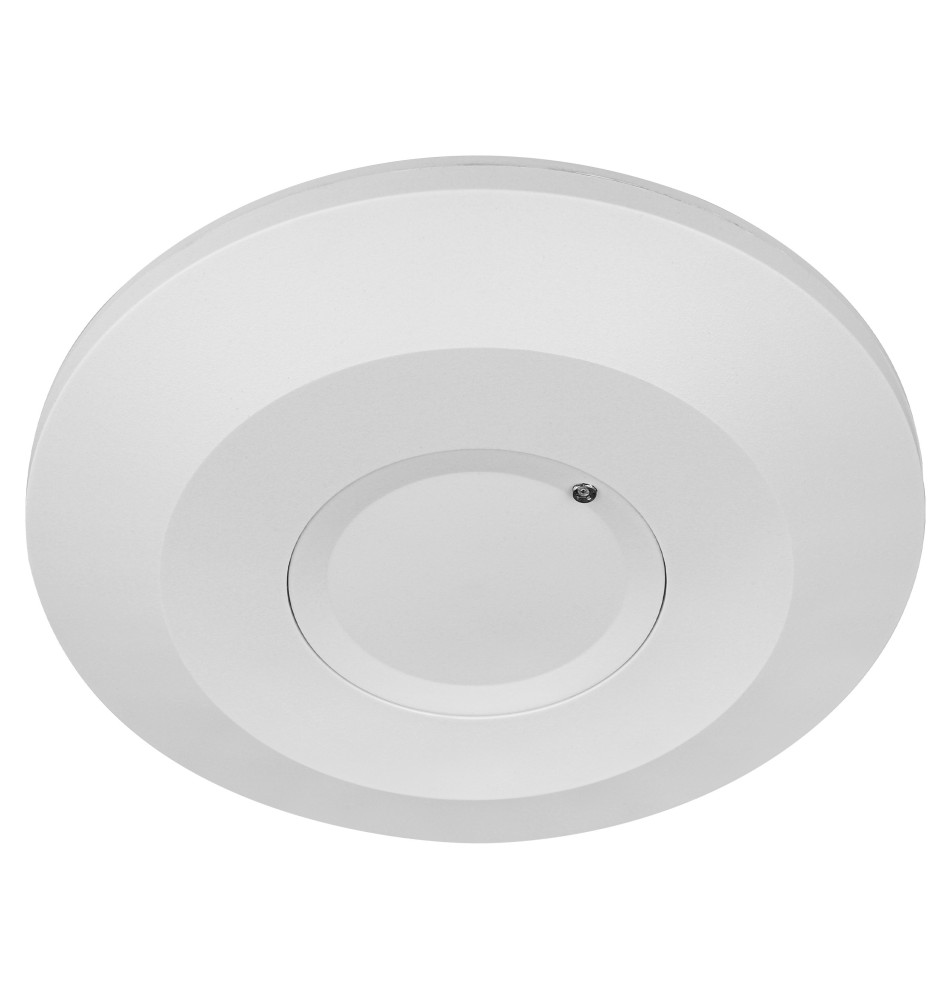

Slim Ceiling-Mounted Microwave Motion Sensor

Master LED
7125

Availability: Available

Data Sheet

Transmission power
<0.2 mW
Max. Load
2,000 W
Input voltage
AC 220-240 V 50/60 Hz
Current consumption
about 0.9 W
Motion Detection
0.6–1.5 m/s
Detection Details
1–8 m (selectable) [<24 °C]
Detection angle
360°
Detection distance
8 m
Microwave system
5.8 GHz CW Radar, ISM Band
Activation threshold
3-2000 LUX
Resistance Class
IP20
Ambient temperature
-20 to 40 °C
Air humidity
<93% RH
Lighting Duration
10 seconds - 12 minutes
Additional Information
A highly sensitive microwave sensor with adjustable settings (illumination time, activation threshold, and detection range).
Installation Height
2–6 m
Dimensions
Ø115 x 24 mm
Master carton packaging
50 pcs
Quantity per package
100 pcs
Quantity per pallet
1500 pcs (100 kg)

Specific References

EAN13
5908263381643
