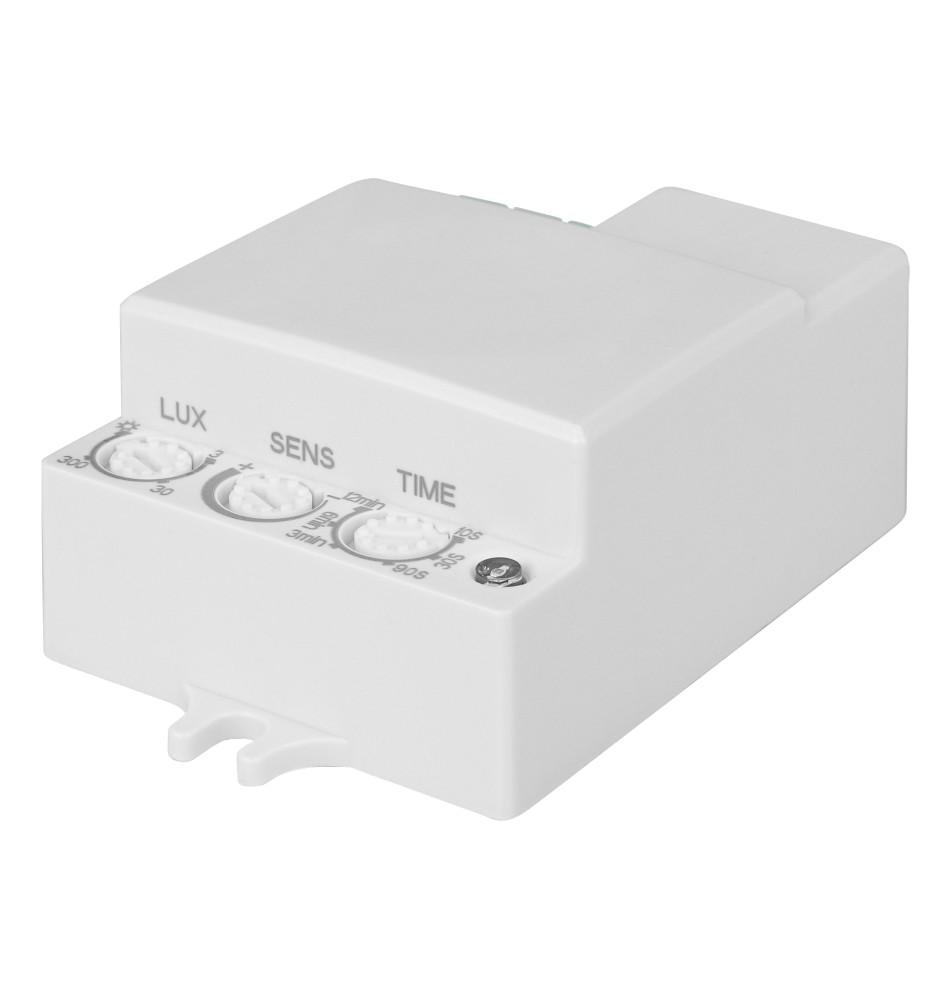

Ceiling-Mounted PIR Motion Sensor

Master LED
6451

Availability: Available

Data Sheet

Transmission power
<0.2 mW
Max. Load
1,200 W
Input voltage
AC 220-240 V 50/60 Hz
Current consumption
0,9 W
Motion Detection
0.6–1.5 m/s
Detection Details
1–8 m [ceiling]; 5–15 m [wall] (adjustable)
Detection angle
360°
Detection distance
15 m
Microwave system
5.8 GHz CW Radar, ISM Band
Activation threshold
3-2000 LUX
Resistance Class
IP20
Ambient temperature
-20 to 40 °C
Air humidity
<93% RH
Lighting Duration
10 seconds - 12 minutes
Additional Information
A highly sensitive microwave sensor with adjustable settings (illumination time, activation threshold, and detection range).
Installation Height
2–8 m (ceiling) / 1.5–3.5 m (wall)
Dimensions
40 x 55 x 25 mm
Master carton packaging
100 pcs (6.76 kg)
Quantity per package
100 pcs (6.00 kg)
Quantity per pallet
2400 pcs (160.00 kg)

Specific References

EAN13
5908263380448
