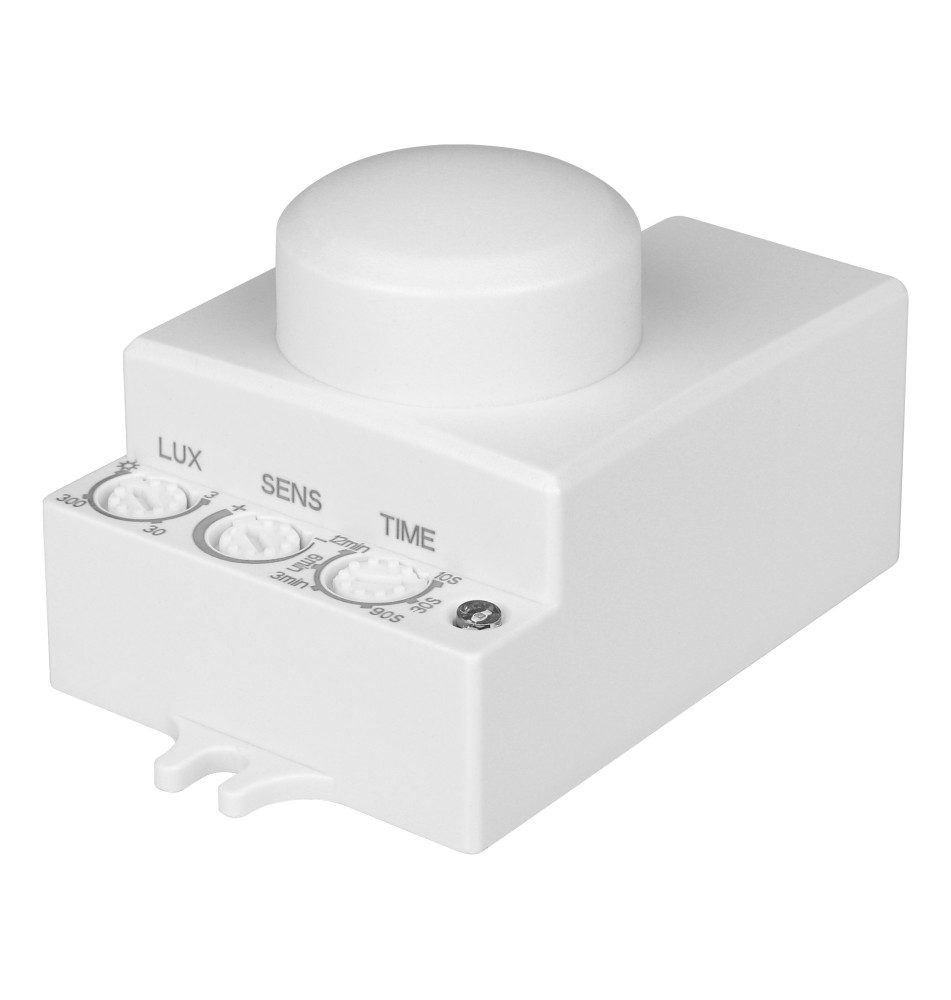

Microwave motion sensor

Master LED
4988

Availability: Available

Data Sheet

Transmission power
<0.2 mW
Max. Load
1,200 W
Input voltage
AC 220-240 V 50/60 Hz
Current consumption
0,9 W
Motion Detection
0.6–1.5 m/s
Detection Details
1–8 m (selectable) [<24 °C]
Detection angle
360°
Detection distance
8 m
Microwave system
5.8 GHz CW Radar, ISM Band
Activation threshold
<3–2,000 LUX
Resistance Class
IP20
Ambient temperature
-20 to 40 °C
Air humidity
<93% RH
Lighting Duration
10 seconds - 12 minutes
Additional Information
A highly sensitive microwave sensor with adjustable settings (illumination time, activation threshold, and detection range).
Installation Height
2–6 m
Dimensions
40 x 55 x 37 mm
Master carton packaging
100 pcs
Quantity per package
200 pcs
Quantity per pallet
2000 pcs

Specific References

EAN13
5903002030257

Download

Instrukcja
.pdf

Download (2.05MB)
