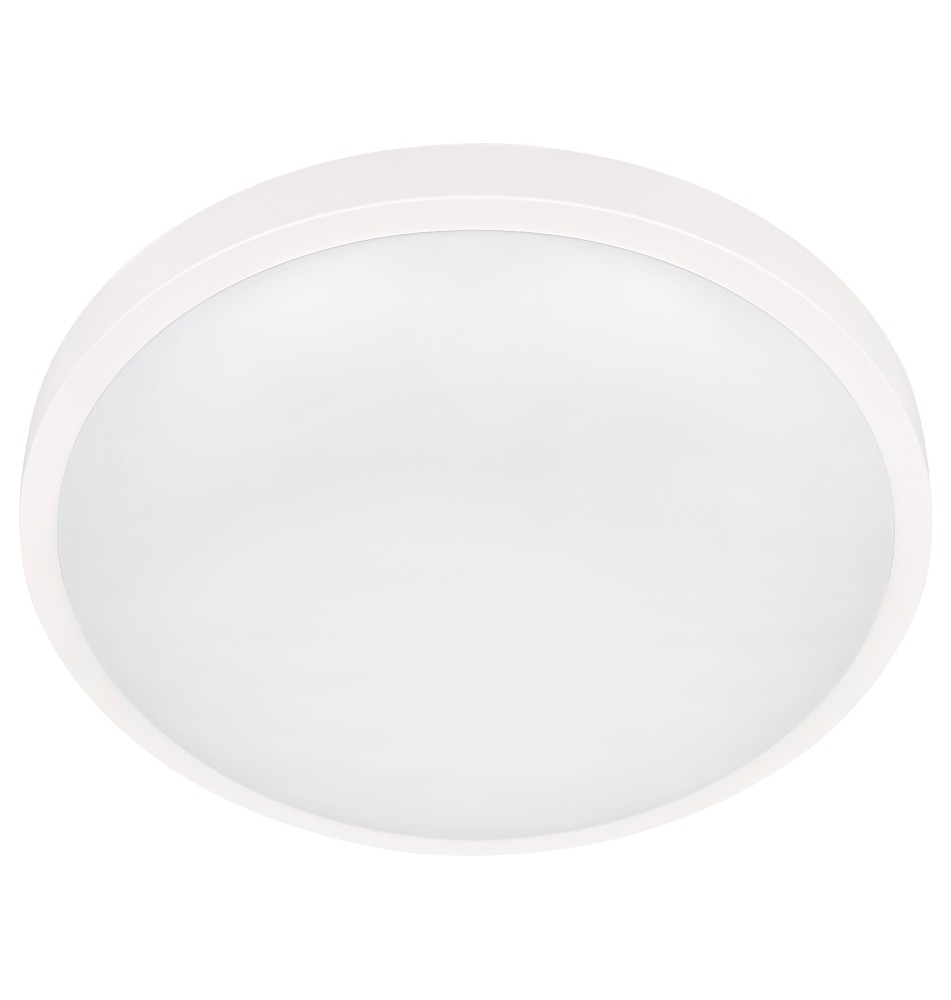

Luvo 24W Round LED Ceiling Light, 4000K White, DIP Sensor

Master LED
9184
4,000 K
White
2400 lm
24 W

Availability: Available

Data Sheet

Light source
LED SMD
Color of Light
4,000 K
Color
White
RAL
RAL 9003
Luminous flux
2400 lm
Luminous efficacy
100 lm/W
Color rendering index
RA>80
Beam angle
120°
Power
24 W
Sensor transmission power
max. 1 mW
Input voltage
AC 220-240 V 50/60 Hz
Standby Power Consumption
<0.5 W
Control Method
DIP switches
Dimming
No
Motion Detection
1 m/s ≥ 2.5 m, 0.3 m/s ≥ 3.5 m
Detection Details
3–5 m (ceiling) [adjustable]
Detection angle
100°
Detection distance
5 m
Motion sensor
Microwave DIP
Activation threshold
5 / 10 / 25 LUX
Frequency
5.8 GHz ±75 MHz, ISM band
Material
Steel + PVC
Resistance Class
IP44
Electrical Protection Class
I
Service life
30,000 hours
Number of on/off cycles
15000x
Operating temperature
-25 to 60 °C
Operating time
5 seconds / 1 minute / 3 minutes / 10 minutes
Start-up time
<0.5 s
Installation Height
3–5 m
Dimensions
Ø325 x 65 mm
Master carton packaging
10 pcs
Quantity per package
10 pcs
Quantity per pallet
100 pcs (100 kg)

Specific References

EAN13
5904703019480
