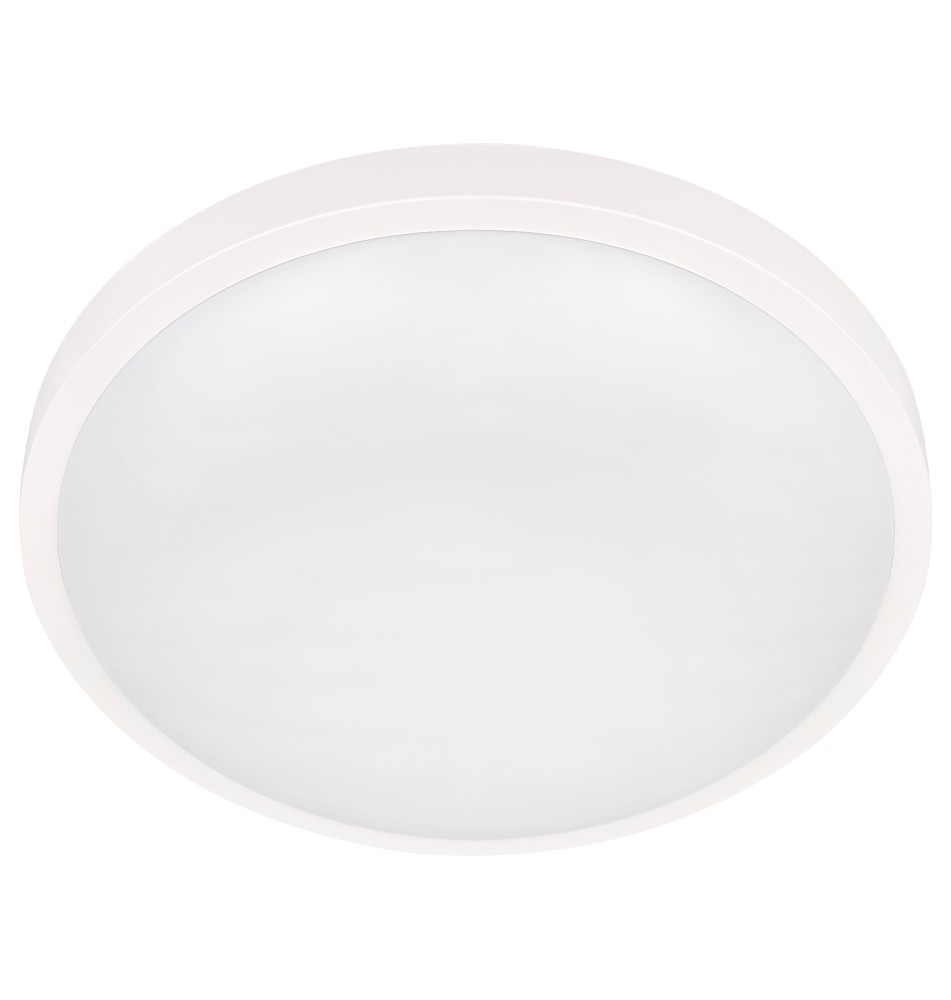

Luvo 18W Round LED Ceiling Light, 4000K White, with Sensor

Master LED
9183
4,000 K
White
1800 lumens
18 W

Availability: Available

Data Sheet

Light source
LED SMD
Color of Light
4,000 K
Color
White
RAL
RAL 9003
Luminous flux
1800 lumens
Luminous efficacy
100 lm/W
Color rendering index
RA>80
Beam angle
120°
Power
18 W
Sensor transmission power
<0.2 mW / max. 1 mW
Input voltage
AC 220-240 V 50/60 Hz
Standby Power Consumption
<0.5 W
Dimming
No
Motion Detection
0.6–1.5 m/s
Detection Details
1.5–5 m (ceiling); 3–8 m (wall)
Detection angle
≤360°
Detection distance
8 m
Motion sensor
Microwave RF
Activation threshold
5–30 LUX
Frequency
5.8 GHz ±75 MHz, ISM band
Material
Steel + PVC
Resistance Class
IP44
Electrical Protection Class
I
Service life
30,000 hours
Number of on/off cycles
15000x
Operating temperature
-25 to 60 °C
Operating time
30±5 s
Start-up time
<0.5 s
Installation Height
<1.5–5 m
Dimensions
Ø275 x 60 mm
Master carton packaging
10 pcs
Quantity per package
10 pcs
Quantity per pallet
100 pcs (100 kg)

Specific References

EAN13
5904703019473
