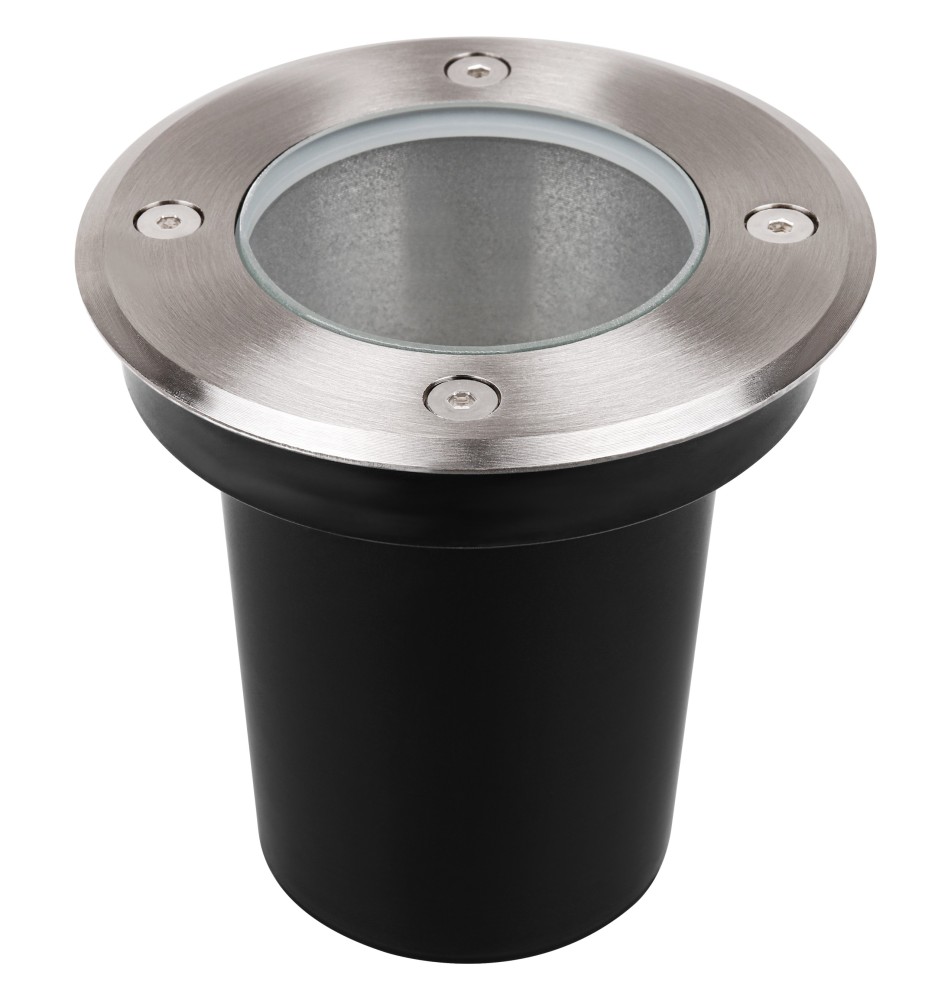

GU10 Round LED Recessed Fixture, IP67, 230V, 110mm

Master LED
3253

Availability: Available

Data Sheet

Light source
Replaceable
Replaceable light source
GU10 (max. 35W) [not included]
Input voltage
AC 85-265 V 50/60 Hz
Material
Housing: Aluminum / Cover: Stainless steel + Tempered glass / Sleeve: Plastic
Resistance Class
IP67
IK rating
IK09
Operating temperature
-25 to 45 °C
Permissible pressure
95 kg/cm²
Number of cable glands
2
Recommended wire gauge for the cable gland
Ø5.5–6 mm (3 × 0.75)
Mounting hole
Ø100 mm
Dimensions including the coupling
Ø110 x 110 mm
Master carton packaging
30 pcs
Quantity per package
30 pcs
Quantity per pallet
840 pcs (550 kg)

Specific References

EAN13
5903002033180

Download

Instrukcja
.pdf

Download (2.2MB)
