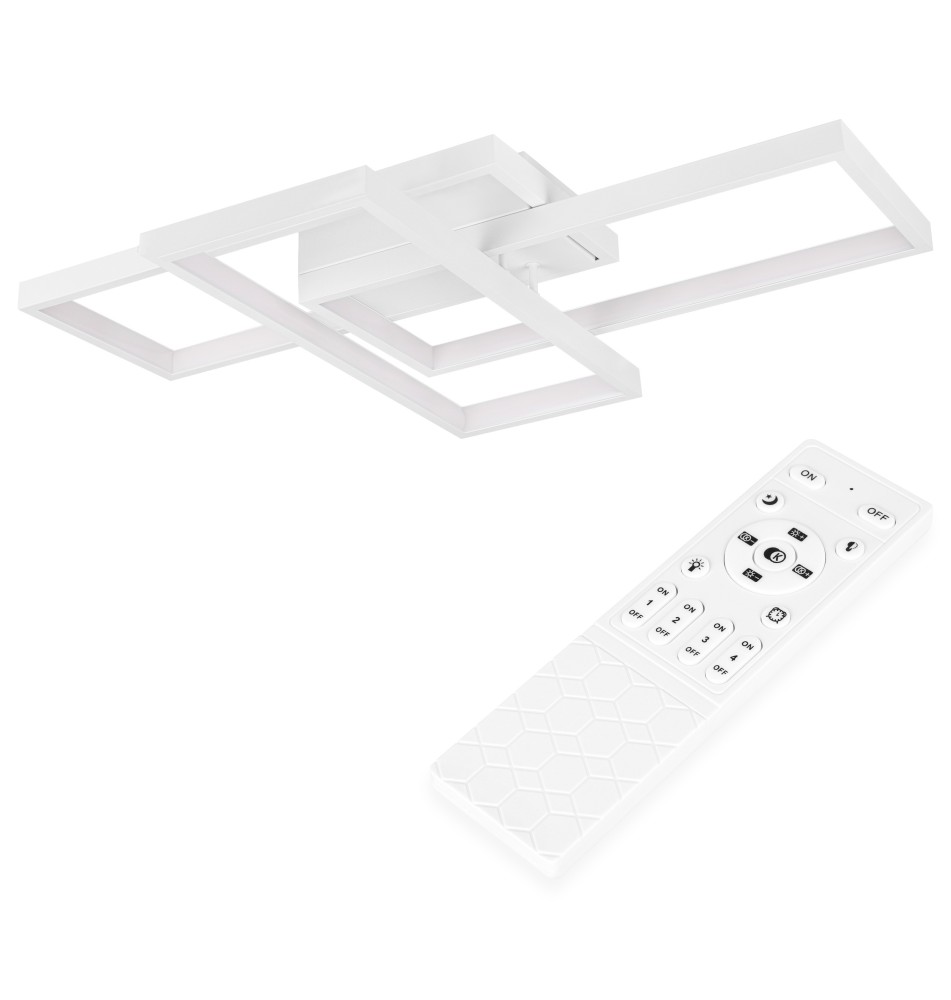

Galaxis Orion 72W LED Chandelier, 56x37x8 cm, White

Master LED
2462
3,000–6,500 K
White
72 W

Availability: Available

Data Sheet

Diode type
2835
Light source
LED SMD
Color of Light
3,000–6,500 K
Color
White
RAL
RAL 9018
Luminous efficacy
110 lm/W
Color rendering index
RA>80
Beam angle
320°
Power
72 W
Power Specifications
72 W (4000 K) / 36 W (3000/6500 K)
Input voltage
AC 165-240 V 50/60 Hz
Battery
2x AAA 1.5 V
Batteries included
No
Control Method
2.4 GHz RF Remote Control, 4-Zone
Dimming
Stepless
Details on Dimming
Smooth 1%-100%
Pairing a Chandelier
1. Turn off the power 2. Turn on the power 3. Press and hold the ON/OFF button for the selected zone (at the same time) for 5 seconds; the light will flash
Unpairing the remote control
1. Turn off the power 2. Turn on the power 3. Press and hold the ON/OFF button for the selected zone (at the same time) for 5 seconds; the light will flash
Material
Steel (base) + aluminum + plastic (shade)
Resistance Class
IP20
Electrical Protection Class
I
IK rating
IK03
Service life
30,000 hours
Number of on/off cycles
15000x
Operating temperature
-25 to 45 °C
Number of LEDs
580
Included in the set
Mounting pins, 1 lamp
Dimensions
560 x 370 x 80 mm
Base Dimensions
170 x 90 x 40 mm
Remote Control Dimensions
141 x 45 x 13 mm
Master carton packaging
1 pcs
Quantity per package
6 pcs
Quantity per pallet
110 pcs (100 kg)

Specific References

EAN13
5908263384132

Download

Instrukcja
.pdf

Download (1.58MB)

Etykieta energetyczna
.jpg

Download (72.15KB)
Energy Class Label
