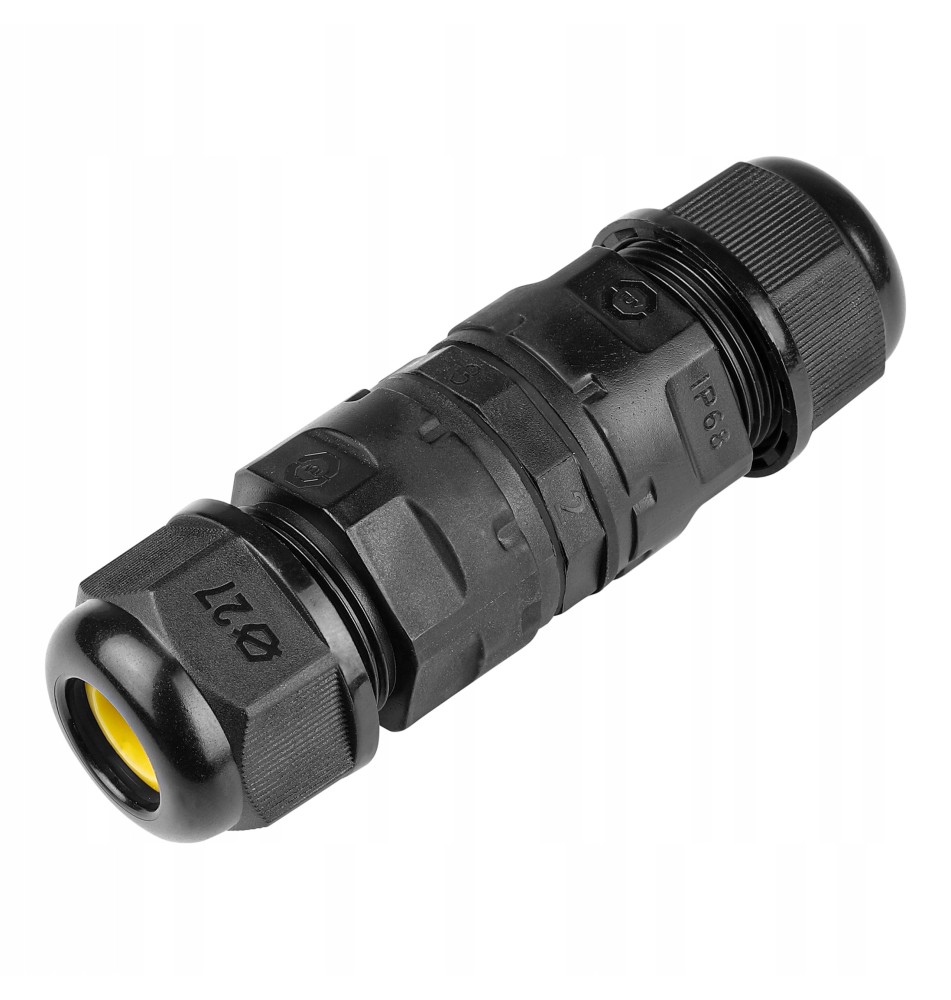

IP68 hermetically sealed cable connector, 5x2.5 mm² power cable

9018

Availability: Available

Data Sheet

Recommended current parameters
Max. 450 V, 24 A
Electrical Strength
2.5 kV/1 min
Material
Anti-UV PA66
Resistance Class
IP68
Operating temperature
-40 to 105 °C
Number of wires
5
Ability to connect wires with a cross-sectional area of
0.5 - 2.5 mm²
Diameter of the gland hole
Ø10 mm
Required outer diameter of the cable
12–14 mm
Dimensions
Ø31 x 101 mm
Master carton packaging
1000 pcs
Quantity per package
100 pcs
Quantity per pallet
3300 pcs (220 kg)

Specific References

EAN13
5904703017912
