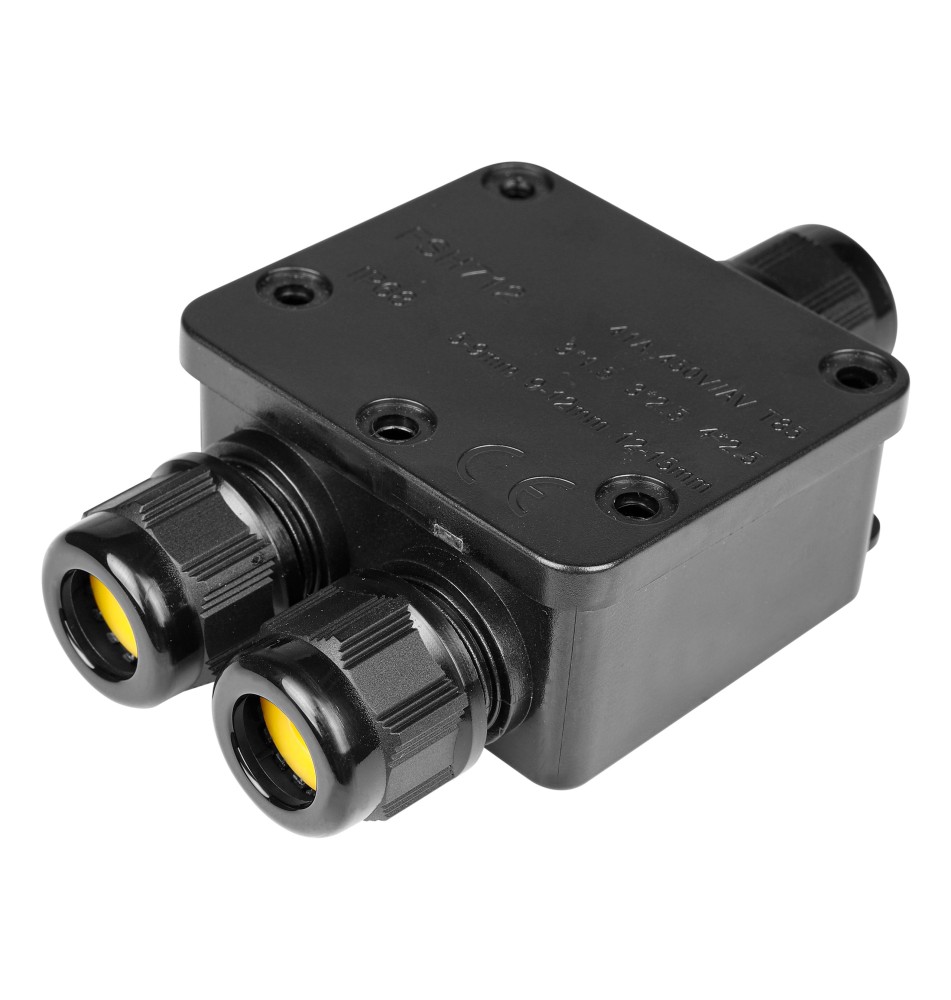

IP68 1/2 Type 2 Hermetic Connector

8073

Availability: Available

Data Sheet

Recommended current parameters
Max. 450 V, 24 A
Electrical Strength
2.5 kV/1 min
Material
Anti-UV PA66
Resistance Class
IP68
Operating temperature
-40 to 105 °C
Number of wires
3
Ability to connect wires with a cross-sectional area of
0.75 - 2.5 mm²
Diameter of the gland hole
11 mm
Required outer diameter of the cable
5–9 mm
Dimensions
120 x 72 x 39 mm
Master carton packaging
100 pcs
Quantity per package
200 pcs
Quantity per pallet
3600 pcs

Specific References

EAN13
5904703005339
