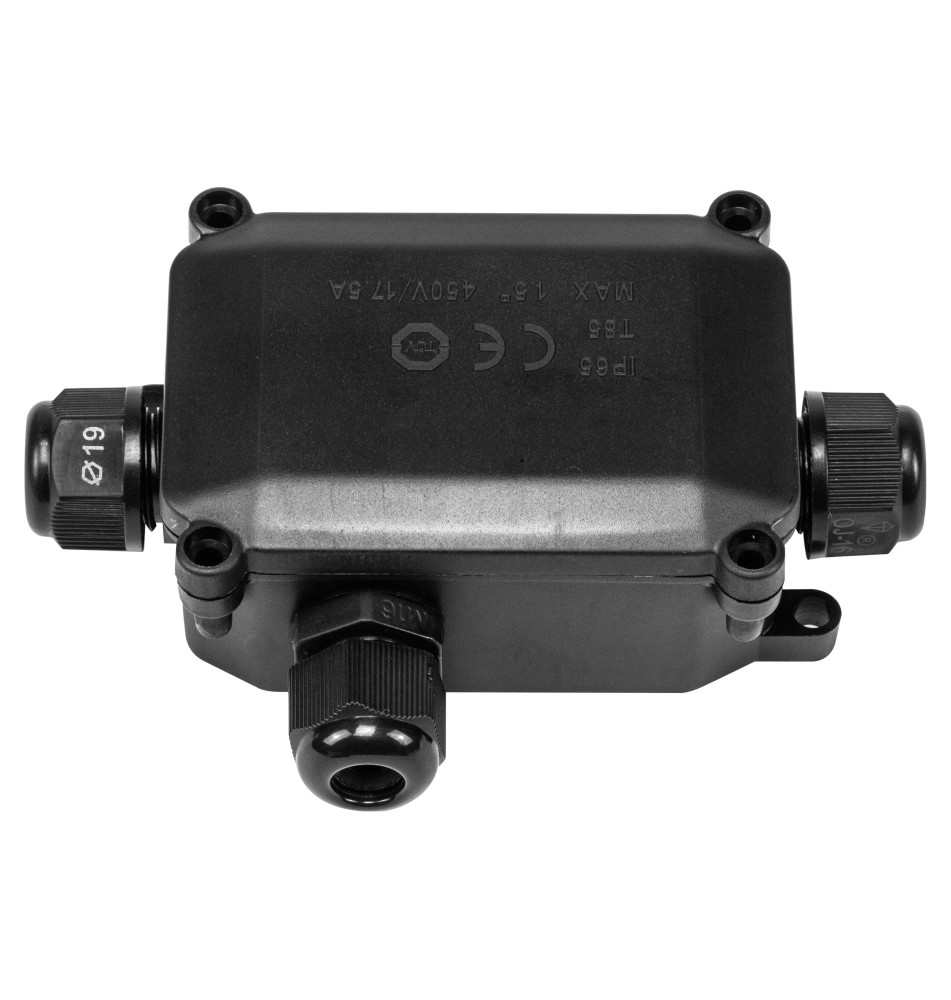

IP65 1/2 Type 1 Hermetic Connector

0604

Availability: Available

Data Sheet

Recommended current parameters
Max. 450 V, 24 A
Electrical Strength
2.5 kV/1 min
Material
Anti-UV PA66
Resistance Class
IP65
Operating temperature
-40 to 105 °C
Number of wires
3
Ability to connect wires with a cross-sectional area of
0.75 - 1.5 mm²
Diameter of the gland hole
8.5 mm
Required outer diameter of the cable
4–8.5 mm
Dimensions
120 x 62 x 39 mm
Master carton packaging
150 pcs. (13.00 kg)
Quantity per package
200 pcs
Quantity per pallet
3,000 pcs. (260.00 kg)

Specific References

EAN13
5904703001379
