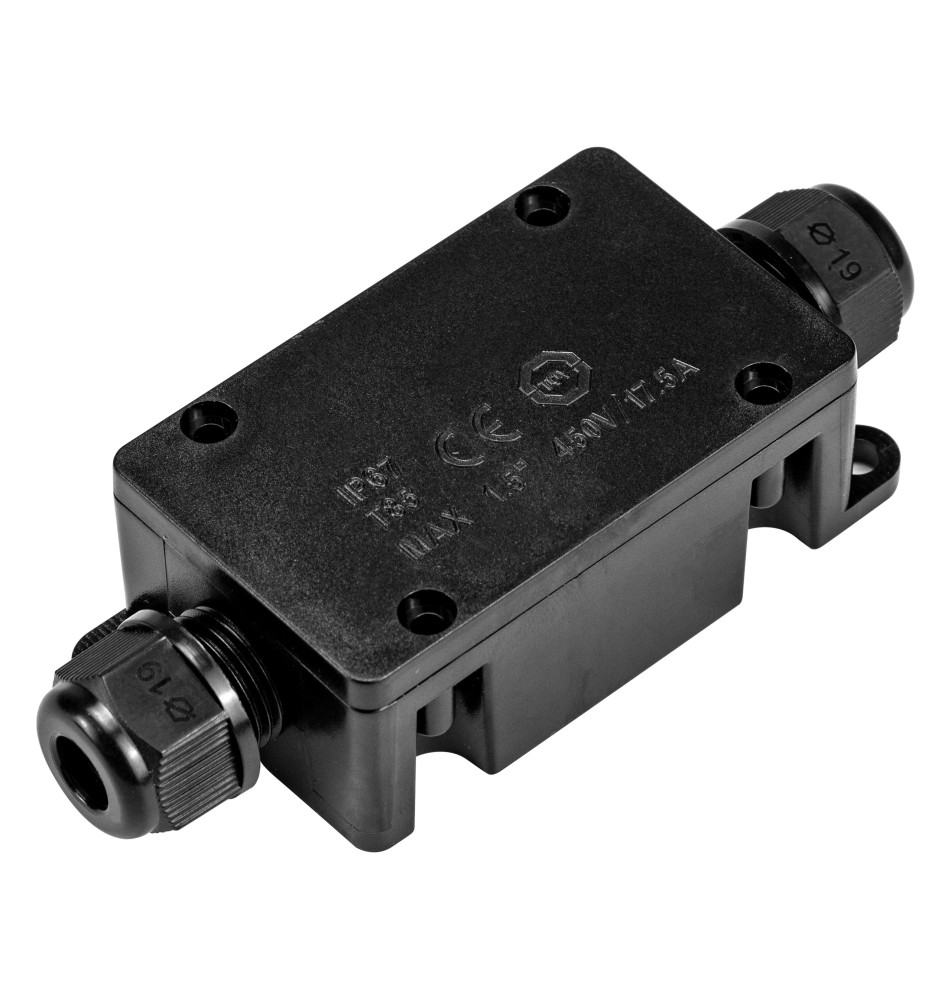

IP67 Hermetic Connector 1/1

0525

Availability: Available

Data Sheet

Recommended current parameters
Max. 450 V, 24 A
Electrical Strength
2.5 kV/1 min
Material
Anti-UV PC
Resistance Class
IP67
Operating temperature
-40 to 105 °C
Number of wires
3
Ability to connect wires with a cross-sectional area of
0.75 - 2.5 mm²
Diameter of the gland hole
8 mm
Required outer diameter of the cable
4–8 mm
Dimensions
110 x 35 x 29 mm
Master carton packaging
200 pcs
Quantity per package
200 pcs
Quantity per pallet
1,600 pcs. (96.00 kg)

Specific References

EAN13
5904703001355
